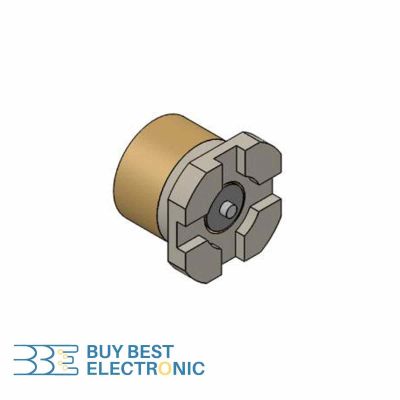

SMPS-JHTD-S/F

مشخصات فنی

• DatasheetDownload
• Impedance 50 Ω
• Minimum Operating Temperature -65 °C
• Maximum Operating Temperature +165 °C
• Mating Cycles 500 Cycles
• Maximum Frequency 65 GHz
• VSWR 1.20 Max thru 26.5 GHz ; 1.5 Max thru 65 GHz
• Insulation Resistance 3500 mΩ
• Body Finish Gold Plate per MIL-G-45204, over Nickel Plate per SAE AMS-QQ-N-290 or Passivated per AMS-QQ-P-35
• Body Material Beryllium Copper Per ASTM B196 and/or ASTM B197 or Stainless Steel type 303, Condition A
• Product Type PCB Mount Male - Post Contact
