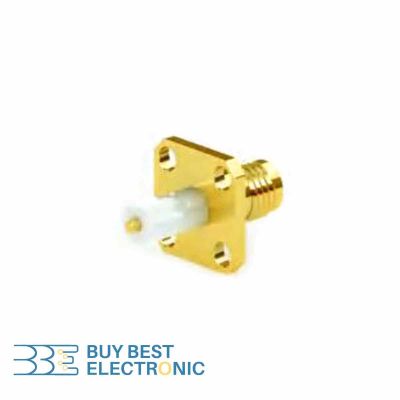

SMA-KFD136

مشخصات فنی

• DatasheetDownload
• Impedance 50 Ω
• Minimum Operating Temperature -65 °C
• Maximum Operating Temperature +165 °C
• Mating Cycles 500 Cycles
• Insulation Resistance 5000 mΩ
• Series RF Coaxial Connector
• Center Conductor 0.003 Ω
• Outer Conductor 0.002 Ω
• Dielectric Withstanding Voltage 1000 V
• Frequency Range with Flexible Cable 0~12.4 GHz
• Frequency Range with Semi-Rigid 0~18 GHz
• VSWR with Flexible Cable 1.15+0.02F
• VSWR with Semi-Rigid 1.10+0.02F
