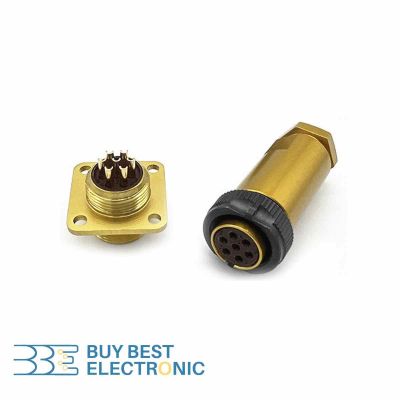

PC07 Male Gold China

مشخصات فنی

• Minimum Operating Temperature -40 °C
• Voltage Rating 200 V
• Maximum Operating Temperature +105 °C
• Number of Pins 7 Pin
• Current Rating 5 A
• Connector Type Circular Male MIL Spec
• Coupling Method Threaded
• Mounting Type Cable Type / 4-Hole Flange Mount
• Shell Material Aluminum Alloy (Gold Color Plated)
• Contact Material Gold-Plated Brass
• Wire Gauge 22–28 AWG
• Contact Resistance ≤ 8 mΩ
• Vibration Resistance 10–2000 Hz, 196 m/s²
• Ingress Protection IP66
• Durability > 500 Mating Cycles
• Relative humidity 92–98% at 40±2°C
• Model PC07-Male
• Application Aerospace, Military Systems, Industrial Automation, Transportation, Sensors, LED Lighting
