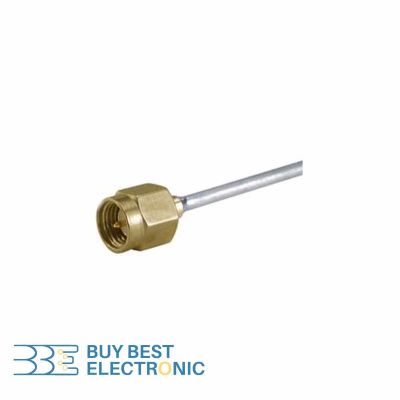

11_SMA-50-2-15/111_NH

مشخصات فنی

• DatasheetDownload
• Minimum Operating Temperature -65 °C
• Maximum Operating Temperature +165 °C
• Maximum Frequency 18 GHz
• Weight 2.2 g
• Impedance 50 Ω
• Body Material Beryllium Copper, Copper Alloy
• Contact Material Beryllium Copper, Copper Alloy
• Mounting Style Cable Mount / Free Hanging
• Product Connectors
• Cable Type EZ-86-TP-M17, MULTIFLEX-86, SUCOFORM-86
• Body Finish Gold
• Contact Plating Gold
• Isolation Non-Isolated
• Gender Plug (Pin)
• Product Type RF Connectors / Coaxial Connectors
• RF Series SMA
• Series SMA
• Termination Style Solder
• Contact Termination Solder
• Polarity Standard
• Orientation Straight
• Body Style Straight
