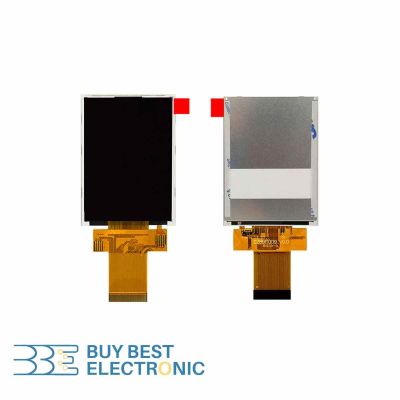

TFT 2.8 inch Parallel

مشخصات فنی

• Operating Temperature -20~70 °C
• Power Consumption 0.22 W
• Size 2.8 inch
• Voltage 2.8~3.3 V
• Resolution 240xRGBx320 display direction
• Interface Type 3-wire serial port/4-wire serial port/8bits /16bits parallel interface
• Number of Pins 40 Pin
• Display Area 43.20(W)*57.6(H) mm
• Physical Size 50.00(W)*69.20(H)*2.60(T) mm
• Current 60 mA
• Control Chip ILI19341
• Backlight Type LED*4
• Material TFT LCD
• Touch Type without touch
