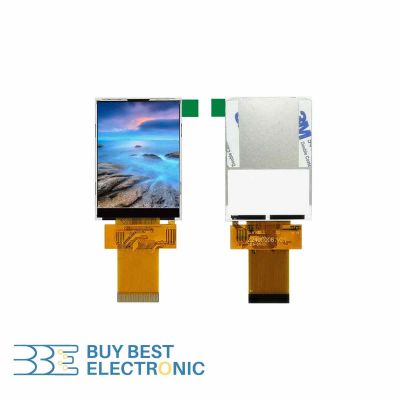

TFT 2.4 Parallel

مشخصات فنی

• Operating Temperature -20~70 °C
• Power Consumption 0.22 W
• Size 2.4 inch
• Voltage 2.8~3.3 V
• Resolution 240xRGBx320 display direction
• Interface Type 3-wire serial/4-wire serial/8bits /16bits parallel interface
• Display Area 36.72(W)*48.96 (H) mm
• Number of Pins 40 Pin
• Physical Size 42.72(W)*60.26(H)*2.55(T) mm
• Current 60 mA
• Control Chip IL19341
• Material TFT LCD
• Touch Type without touch
• Part Number YT240L008 v0.0
