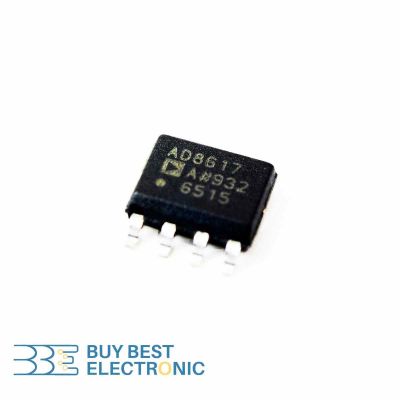

AD8617ARZ

مشخصات فنی

• DatasheetDownload
• Minimum Operating Temperature -40 °C
• Maximum Operating Temperature +125 °C
• Supply Voltage (Min) 1.8 V
• Slew Rate (SR) 100 mV/µs
• Number of Channels 2 Channel
• Supply Current 38 µA
• Gain Bandwidth Product (fT) 400 kHz
• Input Offset Voltage 400 µV
• Supply Voltage (Max) 5 V
• Input Current Noise Density 50 fA/sqrt Hz
• Output Current 70 mA
• Input Bias Current 780 pA
• Supply Type Dual Supply
• Input Type Rail-to-Rail
• Mounting Style SMD/SMT
• Package SO-8 (SOP-8)
