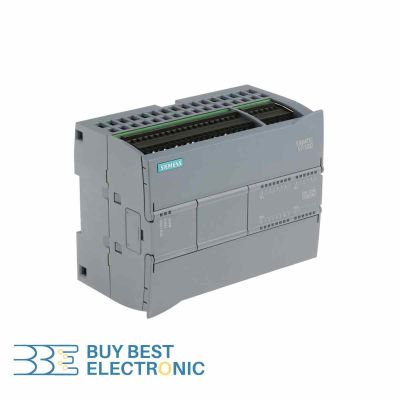

6ES7215-1HG40-0XB0

مشخصات فنی

• DatasheetDownload
• Minimum Operating Temperature -20 °C
• Maximum Operating Temperature +60 °C
• Analog Input Type 0 … 10 VDC
• Net Weight 0.473 Kg
• Number of Transistor Outputs 10 output
• Transmission Speed (Max) 100 Mb/s
• Dimensions 100*130*75 mm
• Packaging Dimension 11.1*13.8*8.3 cm
• Data storage 125 kB
• Digital Input 14 input
• Number of Output 2 Output
• Analog Input 2 input
• Load Current 2 mA
• Operating Voltage (min) 20.4 VDC
• Digital Input Type 24 VDC
• Operating Voltage (max) 28.8 VDC
• Input/Output Max 284 DI/DQ, 51 AI/AQ
• Memory Size 4 MB
• Data Buffer 480 h
• Number of Meters Operating at High Speed 6
• Mounting Style DIN rail mounting
• Programming Language Used Function Block Diagram (FBD), Ladder Diagram (LD), Structured Text (ST)
• Protection class IP20
• Communication Interface Type PROFINET
• Digital Output Type Relay
• Series SIMATIC S7-1200
• Real-Time Clock YES
• Expandability YES
