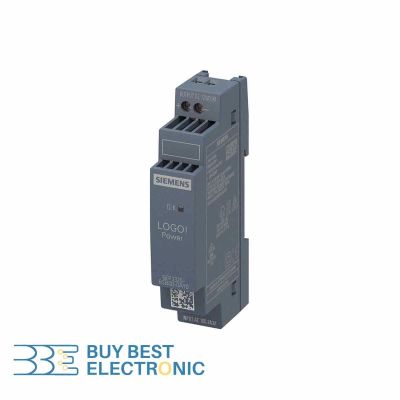

6EP3320-6SB00-0AY0

مشخصات فنی

• DatasheetDownload
• Minimum Operating Temperature -25 °C
• Maximum Operating Temperature +70 °C
• Net Weight 0.07 Kg
• Load Regulation 0.1%
• Number of Output 1 Output
• Electrical Phase 1
• Power Rating 10.8 W
• Output Voltage 12 V dc
• Ripple and Noise 200 mV Pk-Pk
• Input Voltage 230 V ac
• MTBF 3793080 h
• Packaging Dimension 6.7*9.6*3.6 cm
• Efficiency 78%
• Dimensions 90*18*53 mm
• Output Current 900 mA
• AC or DC Input Voltage AC
• Standards Met CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950
• AC or DC Output Voltage DC
• Mounting Style DIN Rail Mount
• Special Features Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio
• Manufacturer Series LOGO!POWER
• Type Switch Mode
